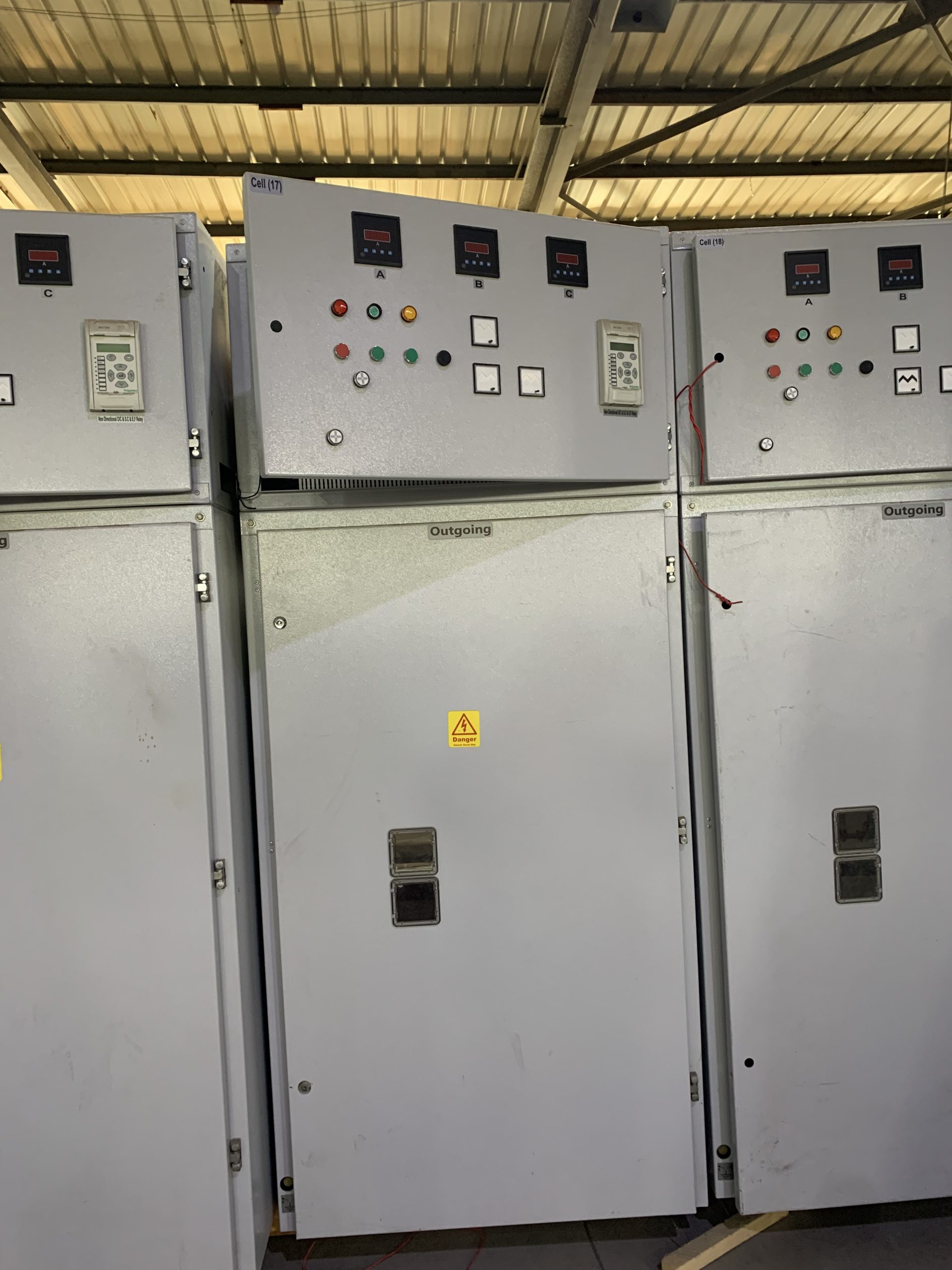

Switchboard 24 kV “MCM”

Product our review

• Fully Type Tested according to the latest IEC standards
• Using Floor Rolling type Vacuum Circuit Breakers
• Rated Current up to 2500 A
• Rated short-time withstand current 31.5 kA 3 sec
• Can be equipped with smart infrastructure for remote monitoring & control

TECHNICAL  DATA

Rated voltage
24 kV
Rated network frequency withstand voltage
50 kVrms @ 1mn
Rated lightning impulse withstand voltage
125 kVpeak
Rated frequency
50/60 Hz
Rated continuous currentfor busbar
1250 – 2000 – 2500 A
Rated continuous currentfor outgoing
630 – 1250 – 1600 - 2000 – 2500A
Rated continuous currentfor circuit-breaker
Up to 2500 A
Rated short-time withstand currentfor 3 s
Up to 40 kArms
Rated peak withstand current
100 kApeak
Degree of protection
IP 4X
